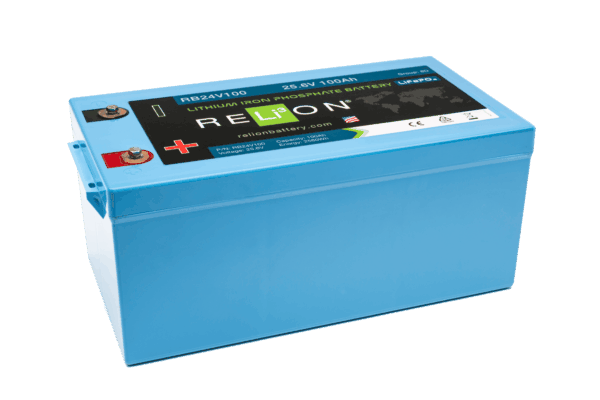

RELi3ON RB24V100 Lithiumakku 25,6V 100Ah

Pituus: 520mmLeveys: 267mmKorkeus: 228mmPaino: 27,7 kg ELECTRICAL SPECIFICATIONS Nominal Voltage 25.6 V Nominal Capacity 100 Ah Capacity @ 25A 240 min Energy 2560 Wh Resistance ≤30 mΩ @ 50% SOC Efficiency 99% Self Discharge <3% per Month Maximum Modules in Series 1 (Single Use) MECHANICAL SPECIFICATIONS Dimensions (L x W x H) 20.5 x 10.5 x 9.0” 520 x 267 x 228 mm Weight 61.1 lbs (27.7 kg) Terminal Type M8 x 1.25 Terminal Torque 80 - 100 in-lbs (9 - 11 N-m) Case Material ABS Enclosure Protection IP66 Cell Type - Chemistry Cylindrical - LiFePO4 DISCHARGE SPECIFICATIONS Maximum Continuous Discharge Current 100 A Peak Discharge Current 200 A (7.5 s ±2.5 s) BMS Discharge Current Cut-Off 280 A ±50 A (9 ±4 ms) Recommended Low Voltage Disconnect 22 V BMS Discharge Voltage Cut-Off 16 V (2.0 ±0.08 vpc) (20 ±6 ms) Reconnect Voltage 20 V (2.5 ±0.05 vpc) Short Circuit Protection 200-600 µs CHARGE SPECIFICATIONS Recommended Charge Current 5 A - 50 A Maximum Charge Current 100 A Charge Current 32ºF to 14ºF (0 to -10 ºC) ≤0.1 C Charge Current -4ºF to 14ºF (-20 to -10 ºC) ≤0.05 C Recommended Charge Voltage 28.4 V - 29.2 V BMS Charge Voltage Cut-Off 31.2 V (3.9 ±0.025 vpc) (1.1 ±0.4 s) Reconnect Voltage 28.8 V (3.8 ±0.05 vpc) Balancing Voltage 28.8 V (3.6 vpc) TEMPERATURE SPECIFICATIONS Discharge Temperature -4 to 140 ºF (-20 to 60 ºC) Charge Temperature* -4 to 113 ºF (-20 to 45 ºC) Storage Temperature 23 to 95 ºF (-5 to 35 ºC) BMS High Temperature Cut-Off 176 ºF (80 ºC) Reconnect Temperature 122 ºF (50 ºC) *Refer to charge currents below 0°C (32°F)
